Knight Alarms is a family-built business first established in 2003. Knight Alarms designs and builds all of our products in-house, giving us the ability to offer tailor made designs.
Control Panels
Control Panels
Control Panels
Knight Alarms control panels are designed with three key points in mind. Reliabiltiy, ease of installation and to be end user friendly.
Whatever your water leak detection needs, we will find a solution that suits. As well as audio and visual alerts, our systems are supplied as standard with alarm relays to control PLC's valves, diallers or onward signalling to the BMS.
Liquid Sensors
Control Panels
Liquid Sensors

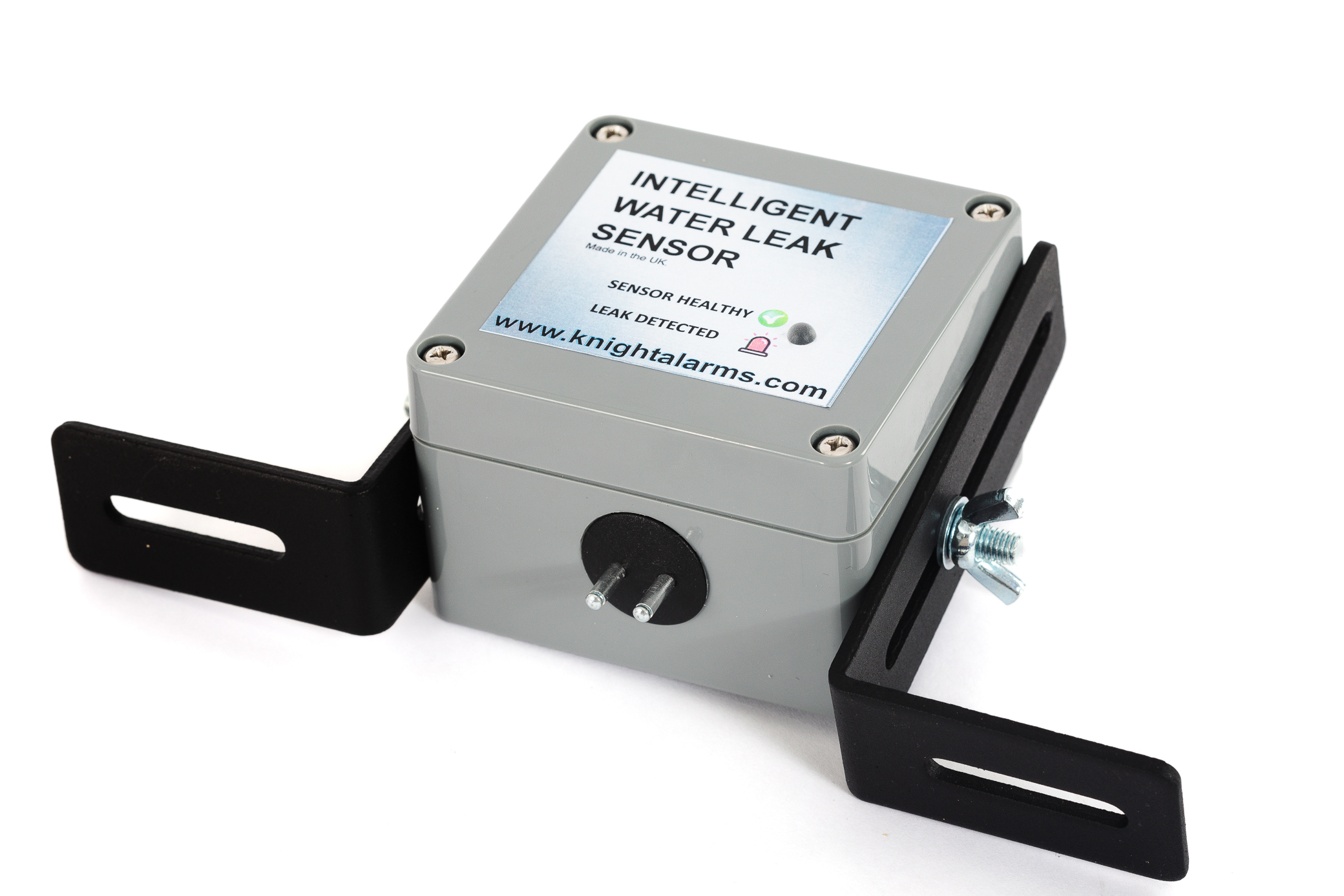

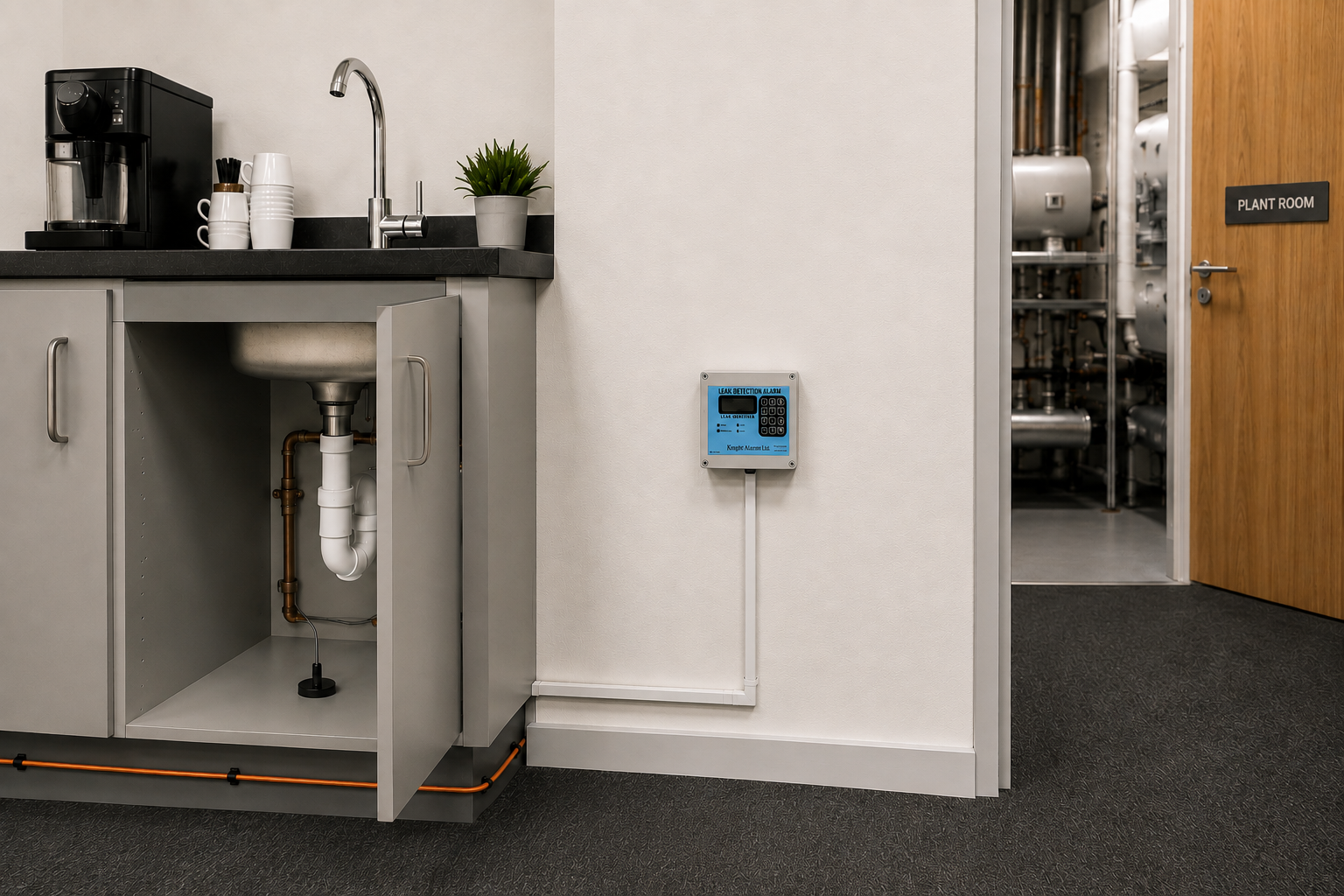

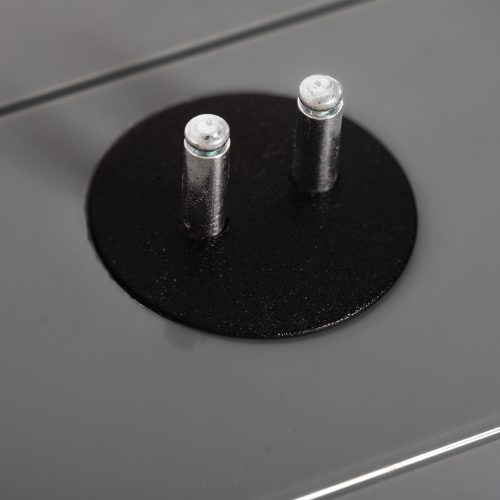

Knight alarms has a wide range of liquid sensing cables, pads and probes suitable for water leak vulnerable areas such as Libraries, Hospitals, Museums, office Tea points, plant rooms, water pipes, kitchenettes, wet rooms, toilets, server rooms or any area that has the threat of water leaks equipment containing water.
Leak Sensing Cable
Two durable stainless steel conductors are wound around 4 insulated carriers offering one of the most robust yet flexible leak detection tapes on the market.

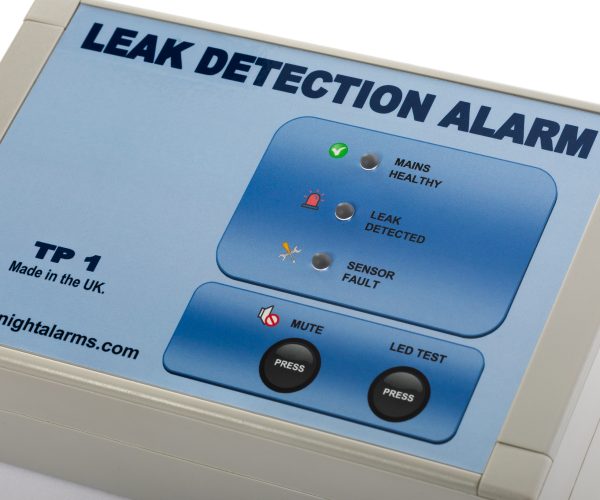

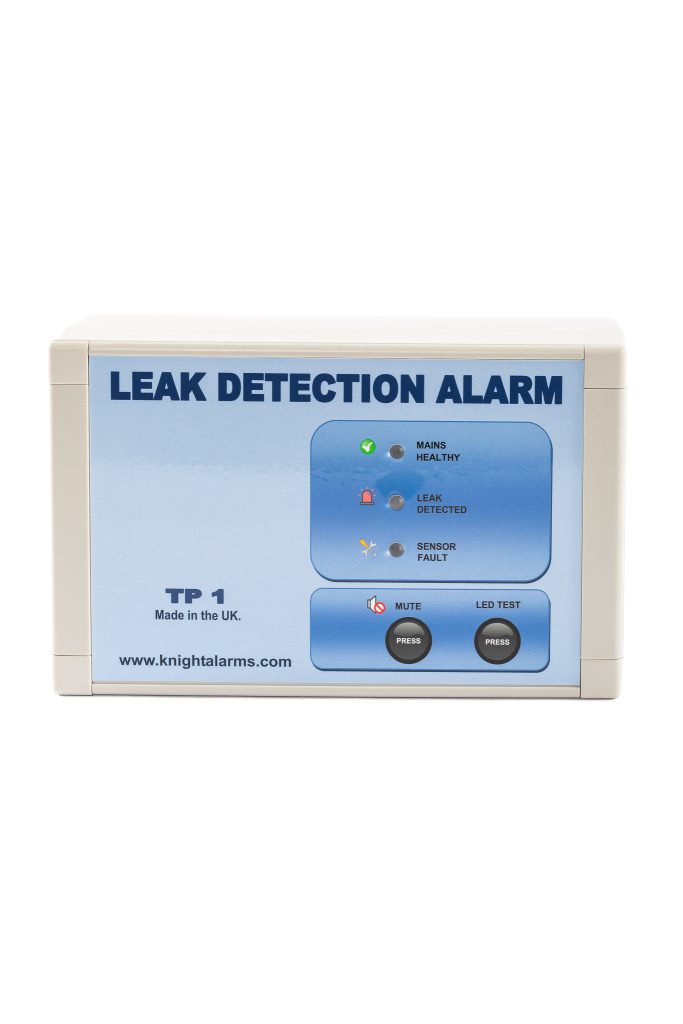

Teapoint Water Leak Detection Alarm
The TP series is a compact water leak alarm designed to protect Tea and Coffee point areas.
The TP water leak alarm as standard has outputs for a 230V AC Valve, A volt-free BMS changeover relay and 12V DC Beacon/Sounder or text dialler.
Water Leak Detection Single Zone
The KA1 is a single zone water leak alarm designed to monitor two areas/zones with one sensor .
The KA1 water leak alarm, as standard has the following outputs:
- Zone 1 alarm relay 2x changeover volt-free contacts 230V 2A.
- Motorised valve output 230V 2amp.
- Beacon 12V DC output.
- Battery backup 12V DC float charged.

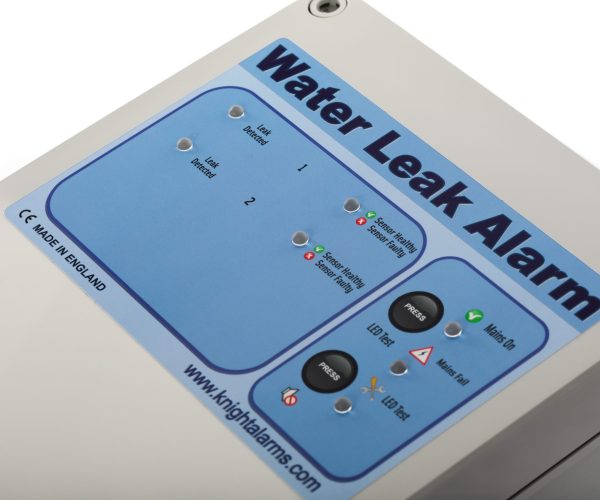

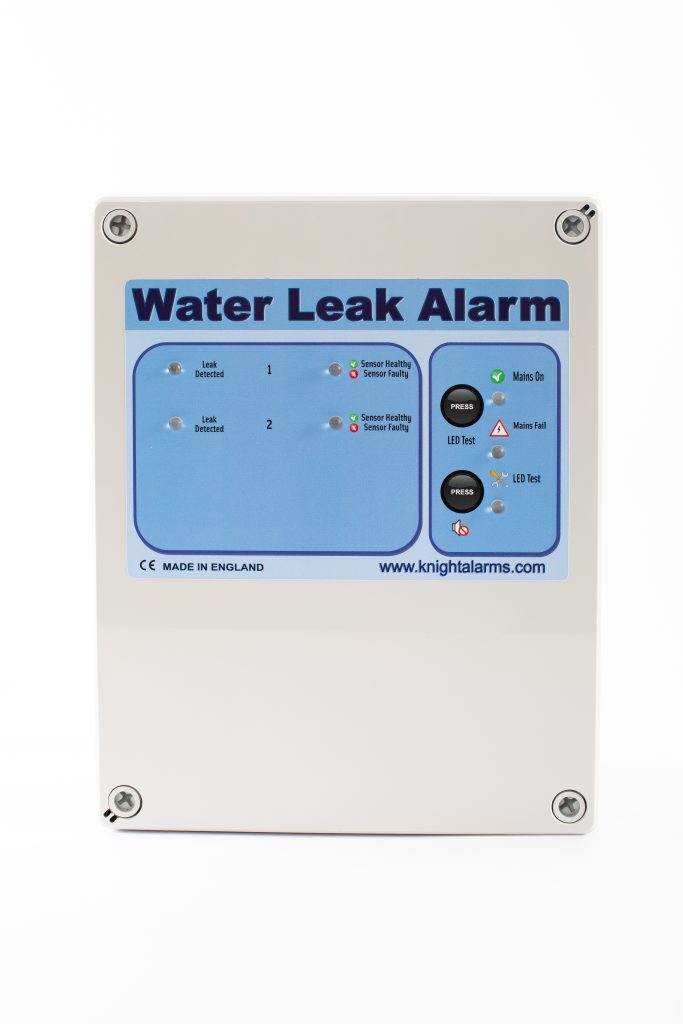

Water Leak Detection Two Zone
The KA2 is a two zone water leak alarm designed to monitor two areas/zones with two seperate sensors .
The KA2 water leak alarm, as standard has the following outputs:
- Zone 1 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 2 alarm relay 2x change-over volt-free contacts 230V 2A.
- Common alarm relay 2x C/O volt-free contacts 230V 2A.
- Common fault relay 1x change-over volt-free contacts 24V 1A.
- Mains failure relay 1x change-over volt-free contacts 230V 2A.
- Battery backup 12V DC float charged.
Water Leak Detection Three Zone
The KA3 is a three zone water leak alarm designed to monitor three areas/zones with three seperate sensors .
The KA3 water leak alarm, as standard has the following outputs:
- Zone 1 alarm relay 2x change-over voltf-ree contacts 230V 2A.
- Zone 2 alarm relay 2x change-over voltf-ree contacts 230V 2A.
- Zone 3 alarm relay 2x change-over volt-free contacts 230V 2A.
- Common alarm relay 2x C/O volt-free contacts 230V 2A.
- Common fault relay 1x change-over volt-free contacts 24V 1A.
- Mains failure relay 1x change-over volt-free contacts 230V 2A.
- Beacon output 12V DC.
- Battery backup 12V DC float charged.

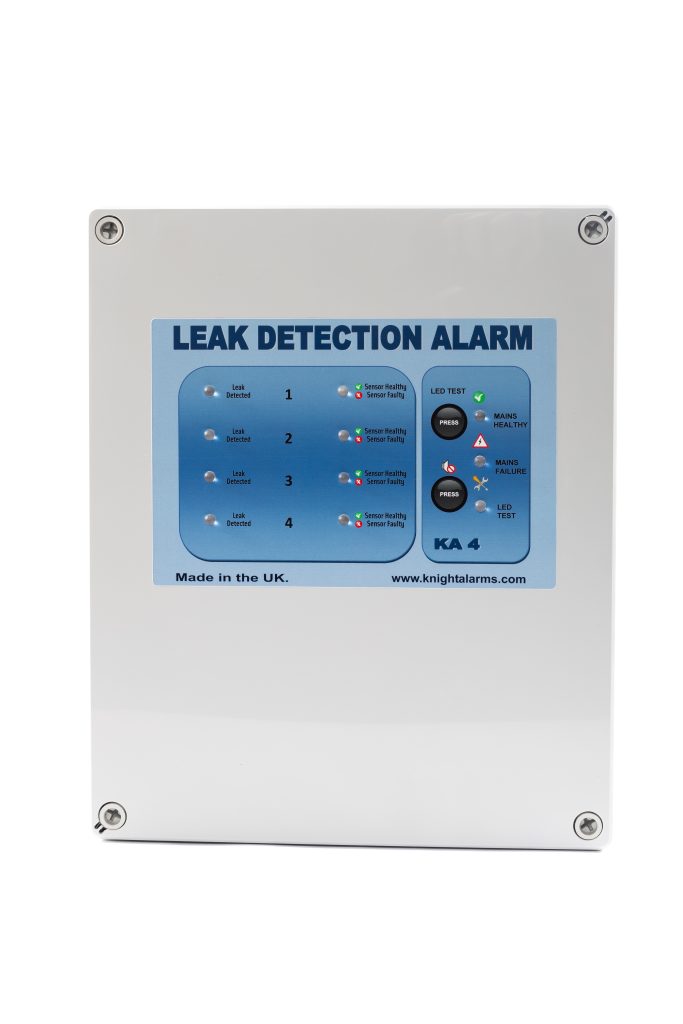

Water Leak Detection Four Zone
The KA4 is a four zone water leak alarm designed to monitor four areas/zones with mutiple seperate sensors .
The KA4 water leak alarm, as standard has the following outputs:
- Zone 1 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 2 alarm relay 2x change-over voltfree contacts 230V 2A.
- Zone 3 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 4 alarm relay 2x change-over volt-free contacts 230V 2A.
- Common alarm relay 2x C/O volt-free contacts 230V 2A.
- Common fault relay 1x change-over volt-free contacts 24V 1A.
- Mains failure relay 1x change-over volt-free contacts 230V 2A.
- Battery backup 12 V DC float charged.
Water Leak Detection Five Zone
The KA5 is a five zone water leak alarm designed to monitor five areas/zones with mutiple seperate sensors .
The KA5 water leak alarm, as standard has the following outputs:
- Zone 1 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 2 alarm relay 2x change-over voltfree contacts 230V 2A.
- Zone 3 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 4 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 5 alarm relay 2x change-over volt-free contacts 230V 2A.
- Common alarm relay 2x C/O volt-free contacts 230V 2A.
- Common fault relay 1x change-over volt-free contacts 24V 1A.
- Mains failure relay 1x change-over volt-free contacts 230V 2A.
- Battery backup 12 V DC float charged.
Water Leak Detection Six Zone
· Zone 1 alarm relay 2x change-over volt-free contacts 230V 2A.
· Zone 2 alarm relay 2x change-over voltfree contacts 230V 2A.
· Zone 3 alarm relay 2x change-over volt-free contacts 230V 2A.
· Zone 4 alarm relay 2x change-over volt-free contacts 230V 2A.
· Zone 5 alarm relay 2x change-over volt-free contacts 230V 2A.
· Zone 6 alarm relay 2x change-over volt-free contacts 230V 2A.
· Common alarm relay 2x C/O volt-free contacts 230V 2A.
· Common fault relay 1x change-over volt-free contacts 24V 1A.
· Mains failure relay 1x change-over volt-free contacts 230V 2A.
· Battery backup 12 V DC float charged.
Water Leak Detection Seven Zone
The KA7 is a seven zone water leak alarm designed to monitor seven areas/zones with mutiple seperate sensors .
The KA7 water leak alarm, as standard has the following outputs:
- Zone 1 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 2 alarm relay 2x change-over voltfree contacts 230V 2A.
- Zone 3 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 4 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 5 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 6 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 7 alarm relay 2x change-over volt-free contacts 230V 2A.
- Common alarm relay 2x C/O volt-free contacts 230V 2A.
- Common fault relay 1x change-over volt-free contacts 24V 1A.
- Mains failure relay 1x change-over volt-free contacts 230V 2A.
- Battery backup 12 V DC float charged.
Water Leak Detection Eight Zone
The KA8 is an eight zone water leak alarm designed to monitor eight areas/zones with mutiple seperate sensors .
The KA8 water leak alarm, as standard has the following outputs:
- Zone 1 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 2 alarm relay 2x change-over voltfree contacts 230V 2A.
- Zone 3 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 4 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 5 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 6 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 7 alarm relay 2x change-over volt-free contacts 230V 2A.
- Zone 8 alarm relay 2x change-over volt-free contacts 230V 2A.
- Common alarm relay 2x C/O volt-free contacts 230V 2A.
- Common fault relay 1x change-over volt-free contacts 24V 1A.
- Mains failure relay 1x change-over volt-free contacts 230V 2A.
- Battery backup 12 V DC float charged.
Water Leak Detection 400 Zone
The Leak Monitor is a multi-zone water leak alarm systemdesigned to monitor larger buildings. Addressable plug-and-play outstations each containing four zones of leak detection and four volt-free change-over relays can be added to the system at any time.
The Leak Monitor water leak alarm, as standard has the following outputs:
- Most reacent alarm 2 x C/O volt-free contacts 230V 2A.
- Common alarm relay 2 x C/O volt-free contacts 230V 2A.
- Common fault relay 2 x C/O volt-free contacts 230V 2A.
- Mains failure relay 1x change-over volt-free contacts 230V 2A.
- Battery backup 12 V DC float charged.
